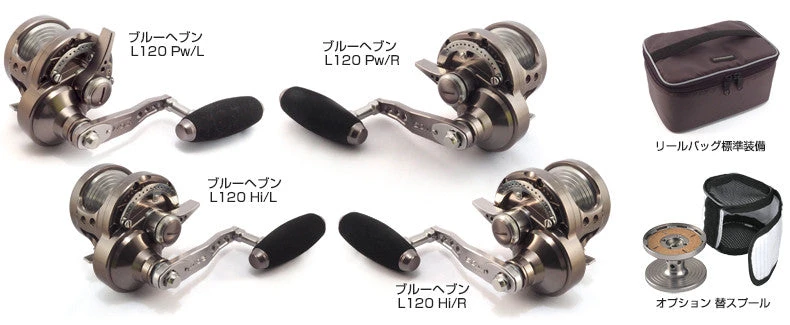

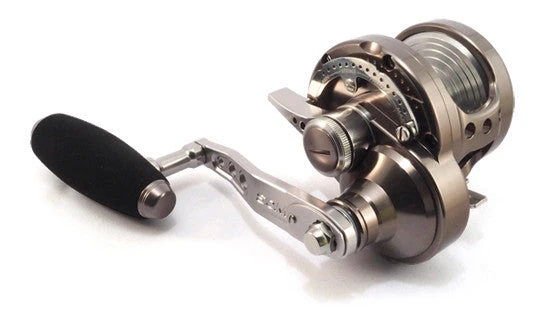

Studio Ocean Mark Blue Heaven L120Hi

This “Made in Japan” Reel is made from the finest materials to ensure a perfect balance between size, weight and power. The multitude of features this reel exhibits guarantees the highest of quality when it comes to Slow Pitch Jigging as each feature has been dealt with special consideration to work in impeccable unison with another to maximise your fishing experience.

** This item will take roughly 2 weeks to ship out. In the case that the reel is unavailable, we will contact the buyer.

DESIGN

SUPER SPOOL FREE

By attaching a clip to the OK75 in the designed location, you may safely attach the knotter to the foot of your line guide, the revit on your rods handle or an anchoring hole located on your boat. This will assist you in tying the FG knot!

ADJUSTABLE HANDLE ARM

The handle arm is made from high grade aluminium and is adjustable to three lengths!
L120 Hi/L : 95mm/83mm

AIR GLOBE SHAPE (NEW AG45) HANDLE KNOB (ONLY L50&L120Hi)

The shape of this handle knob allows for more secure and powerful reeling than ever before, and also due to the flat face of the handle knob it allows for less stress than a traditional round style knob.

AIR EGG SHAPE (AE100) HANDLE KNOB

AIR EGG SHAPE Handle knob {Only available on our Low gear model}
We are using an EVA rubber coating on our all new AE100 handle knob. This coating helps to keep the knob light and slip resistant.
This T-bar shaped knob allows you to get 100% power out of your low geared reel.

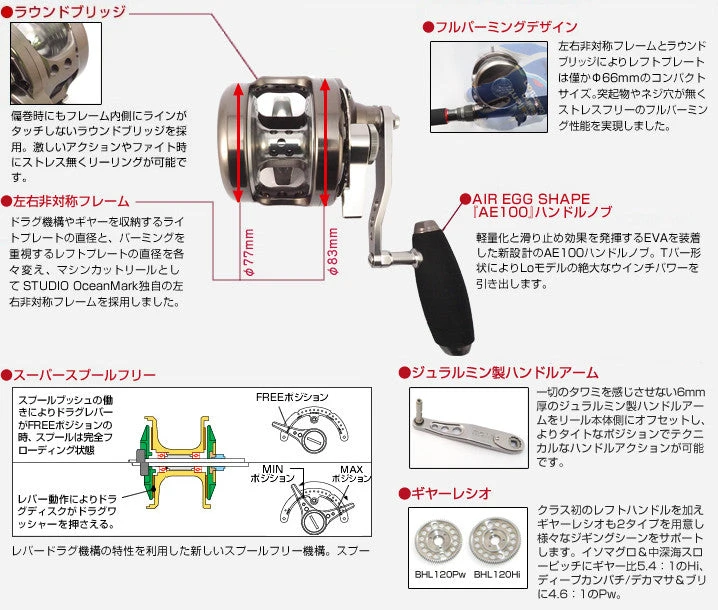

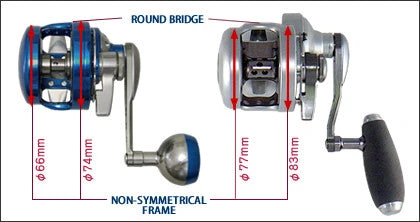

NON-SYMMETRICAL FRAME

When designing our machined cut reel we thought of not only looks but also about ergonomics.
Palming of the reel is one of the most important designs in our mind. A non-symmetrical frame allows for a more natural feel while reeling and less stress at the grind.

ROUND BRIDGE

The inside frame design we are using is called “round bridge”.
This round bridge design helps keep line lay smooth and troubleless,
Non-stress reeling.

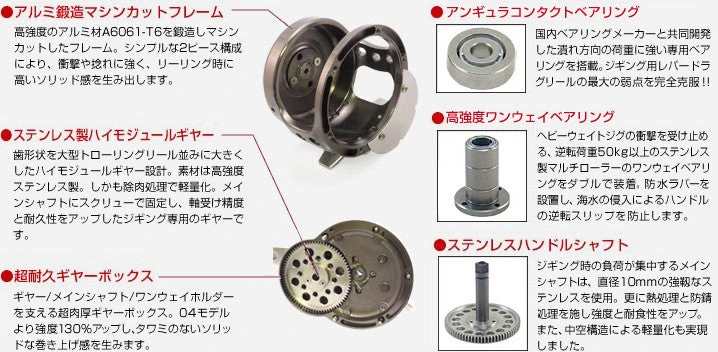

TOUGHNESS



ALUMINUM MACHINE CUT FRAME

Machine cutting allows for increased toughness, durability and solidity that reinforces the strength of the reel to withstand harsher conditions.

ANGULAR CONTACT BEARING

With the help from a local bearing manufacturer, we produced this truly strong and time tested bearing. The max performance bearing period.

SUPER STRONG ONE WAY BEARING

This bearing can stand up to the most heaviest jigs available.
This bearing will guarantee there will be no backwards slipping even at 50+ kilos. Also we are using water proof rubber on the bearing to prevent backwards slipping.

STAINLESS STEEL HIGH MODULAS GEAR

Same type of gear found in large sized trolling reels. Made out of extremely strong stainless steel, but to everyones surprise, it is very light in weight. The gear is attached to the main shaft by a screw. This gear was made for jigging.

STAINLESS HANDLE SHAFT

Handle shaft is made out of 10mm super-strong stainless steel. This handle is extremely heat and corrosion resistant. Also it is very light in weight.

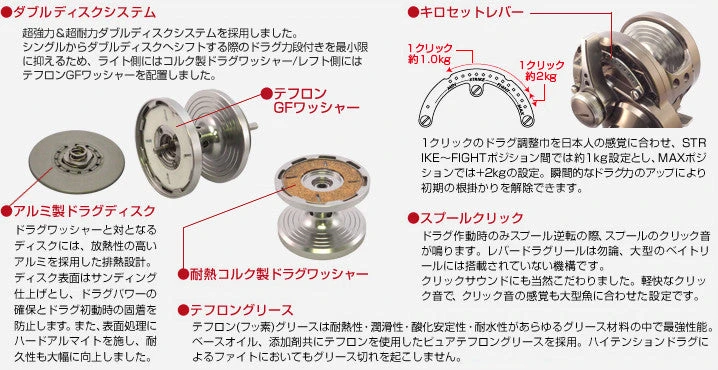

DRAG



ALUMINUM DRAG DISC

This disc helps prevent your drag from heating up and malfunctioning. We have also sanded the face of these discs. An unhindered and smooth drag performance is our goal.

HEAT RESISTANT CORK DRAG WASHERS

These washers are heat resistant and can handle a pounding. From speedy tuna all the way to those torkfull amberjacks, these washers can take it.

KILO SET LEVER

On our L50 reel series you get 0.5kg per drag click. You will get an additional 2kg in the max drag position. With our L120 series reel you will get 1kg per drag click and also 2 additional kilograms in the max drag position.

SPOOL CLICK

The spool will make a clicking sound when the drag is operating.

TEFLON GREASE

We use teflon grease because it has an extremely long life, does not stick, helps reduce heat and it is also works well in saltwater conditions.

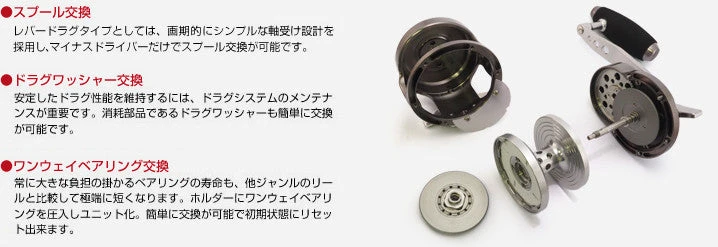

MAINTENANCE



SPOOL CHANGE

You can change the spool with the use of one minus screwdriver.

DRAG WASHER REPLACEMENT

Replacement of drag washers is simple.

ONE WAY BEARING REPLACEMENT

Compared to other types of reels, jigging reels bearings have a shorter life expectancy. So we made it easier to replace those bearings.

GREASE UP

Grease ups made simple. You can get to the drive gear through the right cover cap making grease ups a sinch!
